Return to Listing

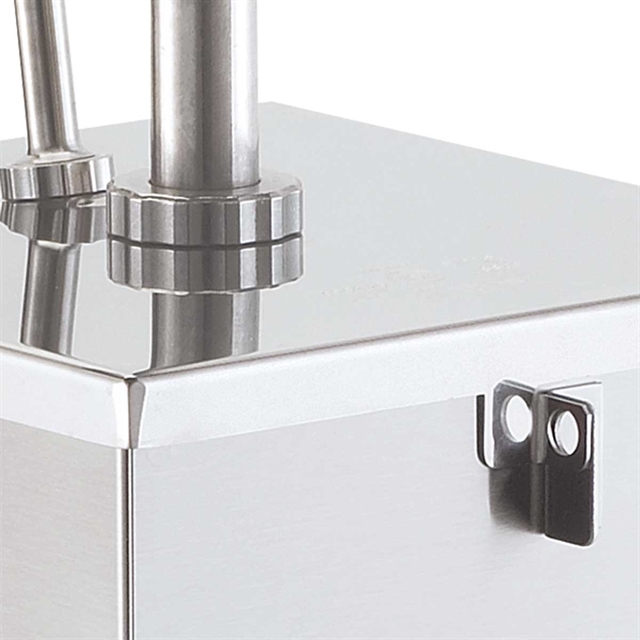

This stainless steel pump with shroud dispenses directly from a #10 can, 3 quart (2.8 L) stainless steel jar 94009 or 1 gallon (3.8 L) jar. The lockable model is designed with a hasp to padlock the pump lid to the stand to reduce the chance of tampering and contamination (padlock not included).
The pump dispenses 1 ounce (30 mL) per stroke with the option to reduce portions in 1/8 ounce (3.7 mL) increments, using the supplied gauging collars. When you place your order, be sure to request a colored knob engraved with your contents for a clean presentation. A black knob is standard.
3 Smart reasons to choose Server pumps: Save Money, Food Safety & Adjustable Portions.
Whether helping you conserve energy, reduce waste, cut costs, save time or lessen your environmental footprint, at Server we believe better really does matter.
Control costs and quality with the BOH boss to dispensing precise, consistent portions from a manufacturers food container | See specs
3 qt (2.8 L) Stainless Steel Jar and storage lid for use in place of #10 manufacturer cans | 94009 Specs
Manual for Stainless Steel Pumps for Gallon Jars or Single Stands | Models CP-SS-F, CPSS-FL, CP-G | Includes: Pump Parts, Cleaning, Dis/Assembly & Troubleshooting Guide
Manual for Server Products Stainless Steel Pump | Models CP-200, CP-F, FP, FP-V, FP-200, FP-200V, FP-1.5, FP-DI, TP-V, TP-200V | Includes: Parts List, Clean-In-Place Procedure, Disassembly, Cleaning, Safety
Parts breakdown diagram for SST Single Stand Dispenser | p/n 67580
SST Pump Change: Replaced machined seal assembly (83003 Rev F) on all 1 oz stainless steel pumps with a molded Teflon® seal (83003 Rev G)
Knob Change: Eliminated o-ring 82053 on stainless steel pumps and fountain jar lid knobs
Discontinued Product: Brazed Pump Repair Kit 82046
How to assemble a Server Products stainless steel pump.
Trouble shooting a Server Products Stainless Steel Pump when product is oozing out of the locking collar.
How do I stop this pump from dripping?
To take care of this mess maker, check the seals and o-rings. If they look worn with tiny cracks or are misshapen, it's a good time for replacement.
Why is my pump hard to push down for dispensing?
This type of symptom was typically seen in Brazed Style (valve bodies) pumps manufactured prior to 1993. Well done on your pump maintenance, if yours is of that age. Our advice is to make sure the ball is resting on the inner valve assembly inside the cage. If that is correctly placed, also ensure the inner valve handle is on the catch.
Why does my pump dispense only a little or no product (under dispense)?
The next time your pump is apart for cleaning, check all seals and o-rings for wear or damage. Over time they develop tiny cracks and need to be replaced. Further investigation depends on what style (age) your pump is… For a Cast Valve with Captured Balls (1999 to present) Make sure the balls move freely when cleaning.
A Cast Valve with Loose Balls (1993 - 1999) Make sure the balls are in the proper place; one in the inlet port of the valve body and the other in the discharge port.
For Brazed Valve Bodies (prior to 1993) Make sure a ball is installed beneath the ball-retaining pin, the retaining pin is in place and a ball is resting on the inner valve assembly under the cage.
Why is product oozing out around or under the locking collar?
First make sure that the seal is firmly installed on the piston and stem assembly, with the flare side of the seal facing down. If the seal was installed properly, it likely needs replacing.
Why isn't my pump returning to the top after dispensing?
Known to insiders as a plunger problem, it's typically either a missing washer or a broken/missing spring.
The washer is necessary to compress the spring, so if it's missing, your plunger will not return. A well-used spring can become worn out or broken. The spring is also necessary for pump operation. Now you can call yourself an insider too.
Your pump Model and Part number are stamped on the lid. With that information, a parts breakdown will determine replacement part numbers.
* Server Products equipment is sold through dealers or distributors. The list prices shown throughout the site are for estimating cost. The final cost may be lower or higher based on your location, taking into account taxes, landing fees, etc.
