Cold Station | (3) Jars & Stainless Steel Pumps

Model:SB-3P/N:83790GTIN:687329014965List:$987.65 USD

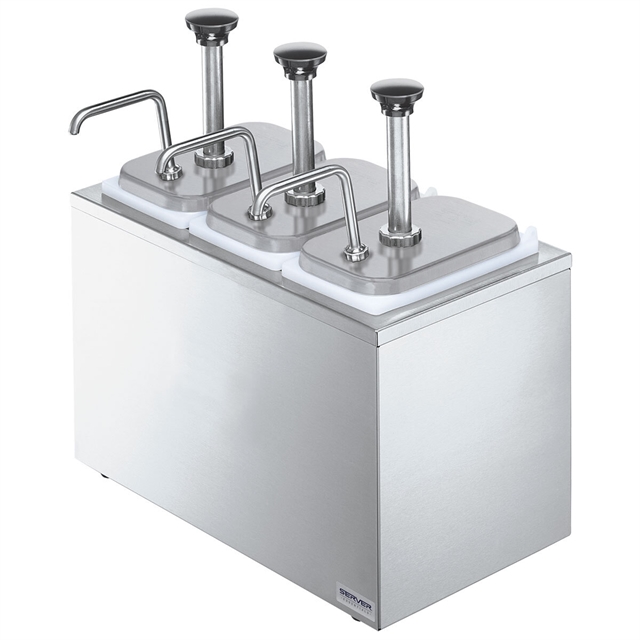

  • Bar Combo (3) Stainless Steel Pumps

This insulated bar combo features stainless steel pumps that can dispense thick products with particulates, which typically require chilling. This model includes three stainless steel pumps and deep plastic fountain jars. The brushed finish base reduces the visibility of fingerprints and may be cooled with Universal Ice Packs 100515, HoldCold Jars or ice. Ice packs and HoldCold jars are sold separately.

The stainless steel pumps dispense a 1 1/4 oz (37 mL) serving per stroke with the option to reduce the portion size in 1/8 oz (3.7 mL) increments, using the supplied gauging collars. When you place your order, be sure to request colored knobs engraved with your contents for a clean presentation. Black knobs are standard.

Standard features include:
  • Brushed finish base reduces the visibility of fingerprints
  • Insulation eliminates condensation on outside, when chilling
  • (3) Stainless steel pumps with captured valve balls to prevent loss
  • (3) Deep, white plastic fountain jars
  • 1 1/4 oz (37 mL) max portion, adjusts in 1/8 oz (3.7 mL) increments for Portion Optimization
  • Colored, engraved knobs to identify flavors, upon request
Serving Application:
  • Specifications
  • Documentation
  • Videos
  • Trouble Shooting
Dimensional Weight38 lb | 17.2 kg
International Dim Wt45 lb | 20.4 kg


Specification Sheet

  • Fountain Jar Cold Stations | Specs 02020
    Fountain Jar Cold Stations | Specs 02020

    Specs for cold stations with stainless steel or Solution pumps or lid and ladle stations. Each include insulated stainless steel base, fountain jars and pumps or hinged lids and ladles.


  • SST Pumps | Manual 01588
    SST Pumps | Manual 01588

    Manual for Server Products Stainless Steel Pump | Models CP-200, CP-F, FP, FP-V, FP-200, FP-200 DI, FP-200V, FP-1.5, FP-DI, TP-V, TP-200V | Includes: Parts & Use

Parts Breakdown

Resource Documents

CAD Drawings


How do I stop this pump from dripping?


To take care of this mess maker, check the seals and o-rings. If they look worn with tiny cracks or are misshapen, it's a good time for replacement.


Why is my pump hard to push down for dispensing?


This type of symptom was typically seen in Brazed Style (valve bodies) pumps manufactured prior to 1993. Well done on your pump maintenance, if yours is of that age. Our advice is to make sure the ball is resting on the inner valve assembly inside the cage. If that is correctly placed, also ensure the inner valve handle is on the catch.


Why does my pump dispense only a little or no product (under dispense)?


The next time your pump is apart for cleaning, check all seals and o-rings for wear or damage. Over time they develop tiny cracks and need to be replaced. Further investigation depends on what style (age) your pump is…

For a Cast Valve with Captured Balls (1999 to present)
Make sure the balls move freely when cleaning.

A Cast Valve with Loose Balls (1993 - 1999)
Make sure the balls are in the proper place; one in the inlet port of the valve body and the other in the discharge port.

For Brazed Valve Bodies (prior to 1993)
Make sure a ball is installed beneath the ball-retaining pin, the retaining pin is in place and a ball is resting on the inner valve assembly under the cage.


Why is product oozing out around or under the locking collar?


First make sure that the seal is firmly installed on the piston and stem assembly, with the flare side of the seal facing down. If the seal was installed properly, it likely needs replacing.


Why isn't my pump returning to the top after dispensing?


Known to insiders as a plunger problem, it's typically either a missing washer or a broken/missing spring.

The washer is necessary to compress the spring, so if it's missing, your plunger will not return. A well-used spring can become worn out or broken. The spring is also necessary for pump operation. Now you can call yourself an insider too.

Your pump Model and Part number are stamped on the lid. With that information, a parts breakdown will determine replacement part numbers.
