3 1/2 Qt Fountain Jar, Lever Pump | Stainless Steel

Model:TPV-LP/N:80879List:$238.00 USD

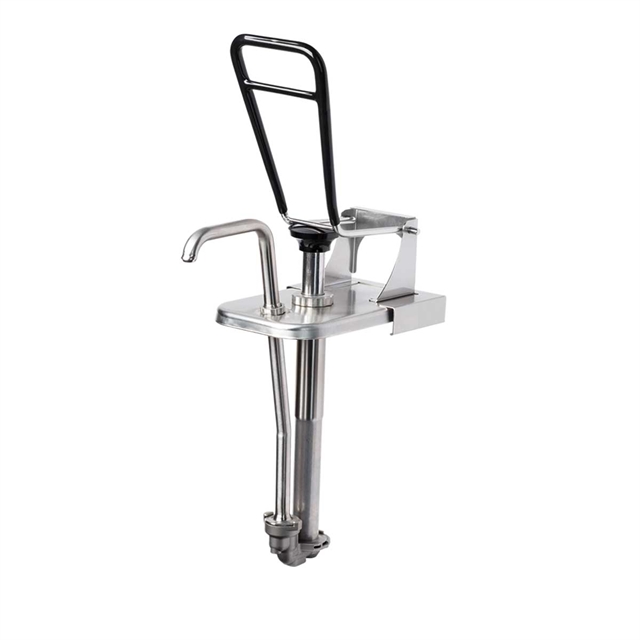

  • FPV-L Pump 80879

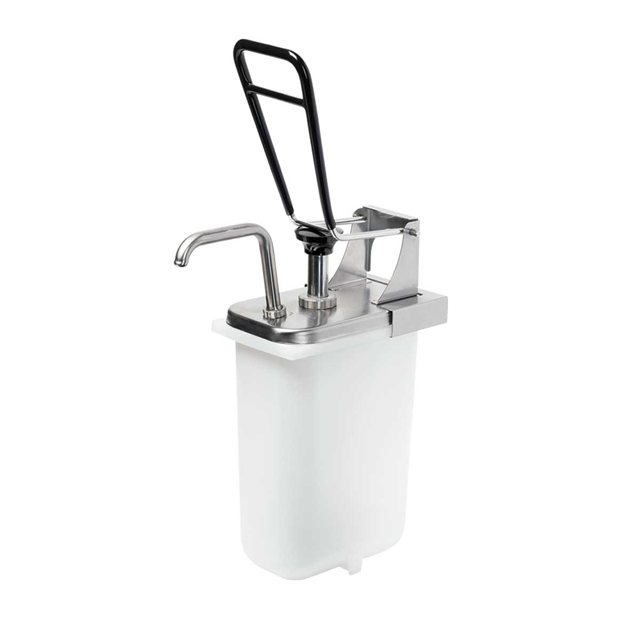

  • FPV-L Pump 80879 shown with a fountain jar

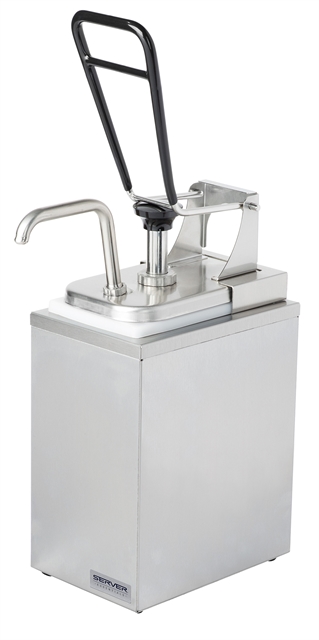

  • FPV-L Pump shown with fountain jar and Serving Station base

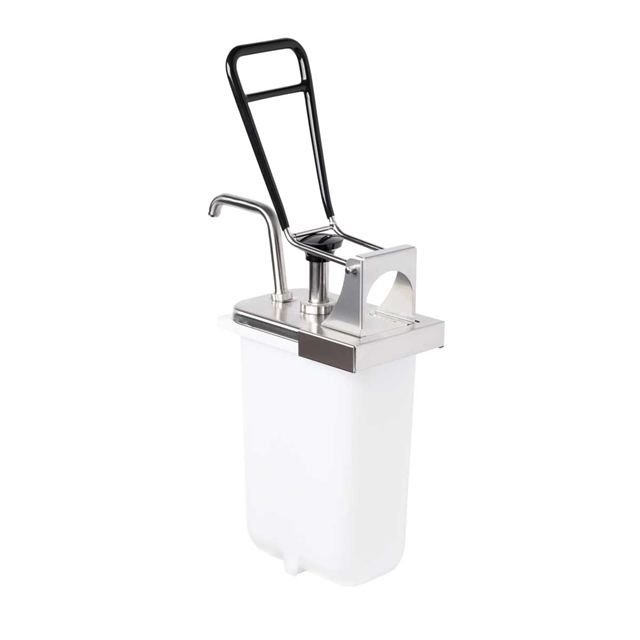

  • FPV-L Pump - Back View

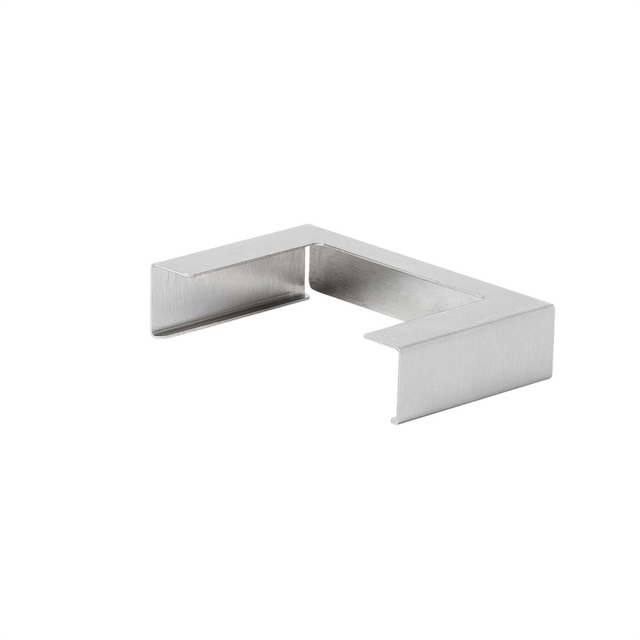

  • Lid Lock included with FPV-L 80879 pump
Fast Facts

An extension of the Thick Pump family, the TPV-L stainless steel pump with the addition of a lever reduces the force needed to dispense from your standard 3 1/2 quart (3.3 L) fountain jar. Set-up to serve a 1/2 oz (15 mL) portion with a maximum of 1 oz (60 mL) and can be reduced in 1/8 oz (3.7 mL) increments. Contents can be quickly identified by specifying a colored and engraved pump knob upon order, at no additional charge; black is standard.

Ideal For
  • Dispensing thick caramel, chocolate fudge or marshmallow crème topping
  • Reducing the force required to dispense a topping or ingredient speeds prep time
  • Providing menu item consistency with precise portions
  • Countertop use in a serving station, wherever FP-V fountain jar pumps fit
  • BOH kitchen make stations

Notes: Included lid lock (80976) needs to be in place to secure pump lid to a Server Products fountain jar (82557, 83149 or 83156) while dispensing; jar sold separately. Natural operation of lever will cause some surface wear on the pump knob.

Dispenses
Certifications:
BPA-Free
NSF
Serving Application:
Ambient
Cold
  • 2-Year Warranty
  • Crafted In the USA
  • GTIN: 687329046300
How does a lever help with thick products?

Suppose you're dispensing chocolate fudge topping... the chart and figures below indicate the effort an operator needs to exert for one serving.

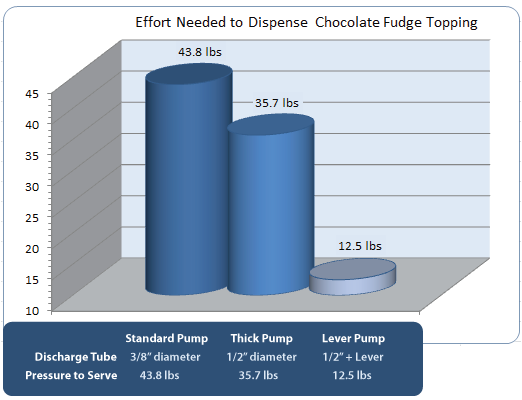

Lever Pump Effort Reduction Chart

  Standard Pump Thick Pump Lever Pump
Discharge Tube 3/8" diameter 1/2" diameter 1/2" with dispensing lever
Pressure to Dispense 43.8 lbs 35.7 lbs 12.5 lbs

What about Nutella®?
  • We wish! One of the essential elements to dispensing is the food needs to find its own level. That means if you remove a scoop, it will fill in fairly quickly. If it doesn't, the pump may serve once or twice and then stop - the product near the intake has been dispensed and an air gap (hole) is created. While a lever can reduce the force necessary to dispense, the product also needs to finds its own level to be compatible.
Can a lever pump dispense larger particulates?
  • Unfortunately, no. Larger food pieces would get lodged in the valve body, which is a common part for all three pump styles referenced above. The size of soft food particulates that can likely be dispensed remains at less than 1/4" in diameter.
  • Specifications
  • Documentation
  • Videos
  • Trouble Shooting
Height Above Container9 15/16" | 25.2 cm
Width4 1/2" | 11.4 cm
Depth7 1/8" | 18.1 cm
Weight4 lb | 1.8 kg
Works With3 1/2 qt (3.3 L) deep fountain jars
Dispense TypeLever, Portioned
Full Portion1 oz | 30 mL
Portionadjustable in 1/8 oz (3.7 mL) increments; up to 1 oz (30 mL)
NSF ListedY
BPA FreeY

Brochures

Specification Sheet

Manuals

Parts Breakdown

Resource Documents

CAD Drawings

Problem:

How do I stop this pump from dripping?

Solution:

To take care of this mess maker, check the seals and o-rings. If they look worn with tiny cracks or are misshapen, it's a good time for replacement.

Problem:

Why isn't my pump returning to the top after dispensing?

Solution:

Known to insiders as a plunger problem, it's typically either a missing washer or a broken/missing spring.

The washer is necessary to compress the spring, so if it's missing, your plunger will not return. A well-used spring can become worn out or broken. The spring is also necessary for pump operation. Now you can call yourself an insider too.

Your pump Model and Part number are stamped on the lid. With that information, a parts breakdown will determine replacement part numbers.
